- Additional Description
Alternative for DHS4E4A561KC2B, JX5T3M561K10KV, NX5T3M561K10KV, DHS4E4A561MCXB, 715C10KTT56 10KV 560PF

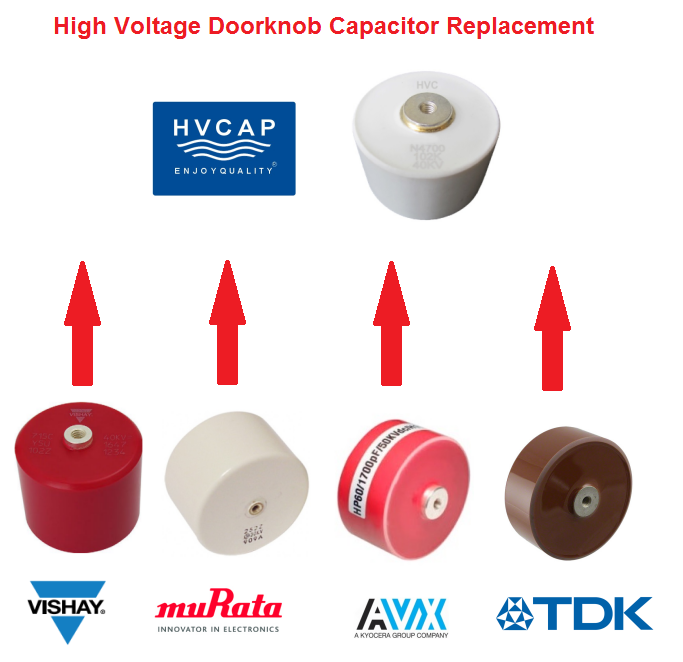

HVC Capacitor produce high voltage ceramic doorknob capacitor, well alternative and replacement solution for well known brandlike Vishay ,Murata, AVX, TDK item. Know more from following https://www.hv-caps.com/HV-Screw-Terminal-Capacitor/hv-screw-terminal-capacitor_3335.html ，HVC doorknob capacitor mostly use N4700 class I ceramic dielectric, production voltage up to 150kvDC and 100kvAC ,AC particle discharge can as lower as 0.6 to 1.5pc in giving AC condition. typical application like High voltage power supply in Gas laser, X - ray machine (both NDT and Medical application) , Marx generator, Pulse power application. Already approval by Fortune 500 companies like GE,KONICA, PHILIPS...
Murata HV ceramic doorknob capacitor announce EOL in mid of 2018
AVX doorknob capacitor announce EOL in October 2018
TDK and Vishay doorknob capacitor sitll available in the market, quality yet also in expensive.
Other American brand like HVCA and Genvolt, is OEM product and made in China.
SPEC 10KV 560PF
| Manufacturer | Murata Electronics | |
|---|---|---|
| Series | DHS | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Capacitance | 560pF | |
| Tolerance | ±10% | |
| Voltage - Rated | 10000V (10kV) | |
| Temperature Coefficient | N4700 | |
| Operating Temperature | 20°C ~ 85°C | |
| Features | High Voltage | |
| Ratings | - | |
| Applications | General Purpose | |
| Mounting Type | Requires Holder | |
| Package / Case | Disk, Metal Fitting - Threaded | |
| Size / Dimension | 0.787" Dia x 0.689" L (20.00mm x 17.50mm) |
HVCA
NX5T3M561K10KV
SPECIFICATIONS
| Specification | Conditions | Value |
|---|---|---|
| C | 560 pF | |
| Tol. | Plus or Minus | 10 % |
| Material | T3M/N4700 | |
| VRATE | 10000 V | |
| VWITHSTAND | 15000 V | |
| D | 20 mm | |
| H | 12 mm | |
| L | 16 mm | |
| Term | M4x4 mm |
HVC item :HVCT8G-10KV-DL30-561K, Please inquiry for specific datasheet and sample.
